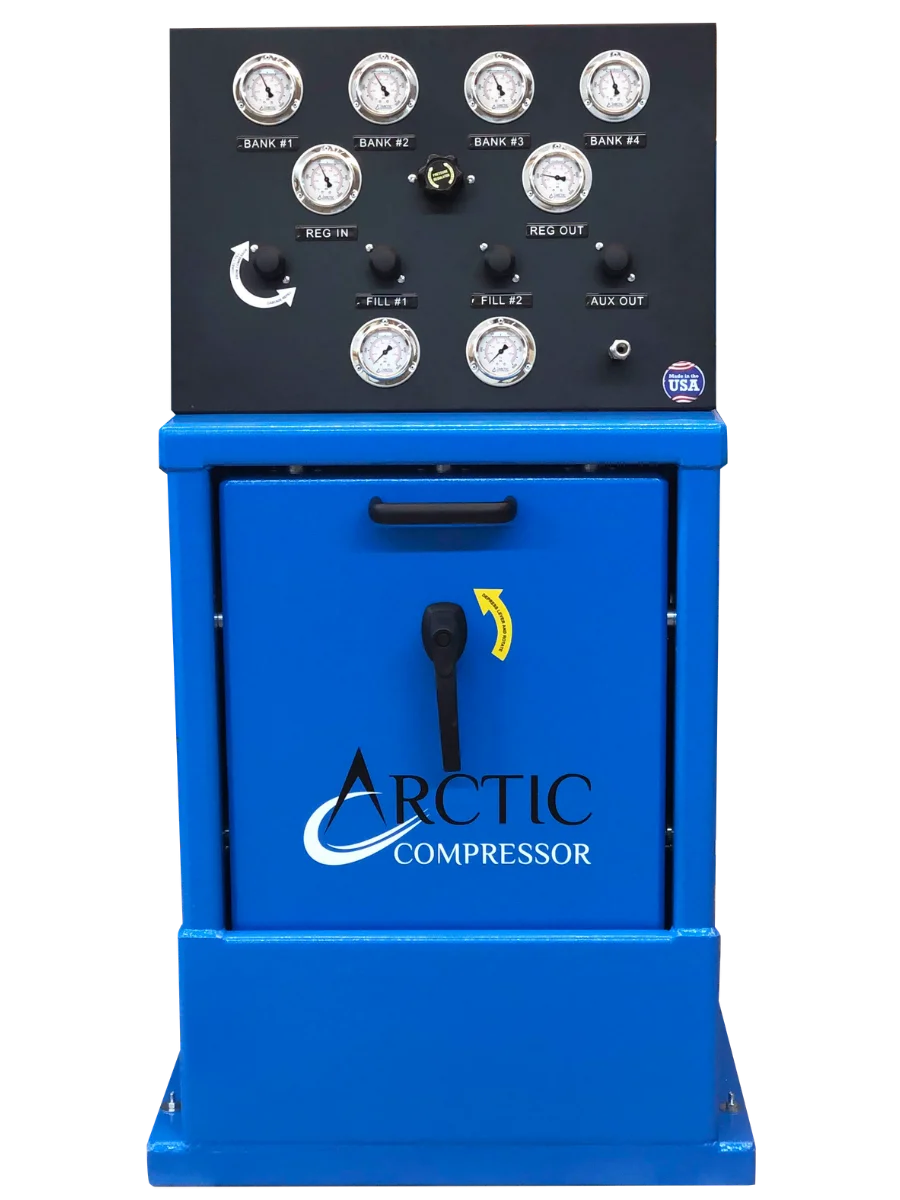

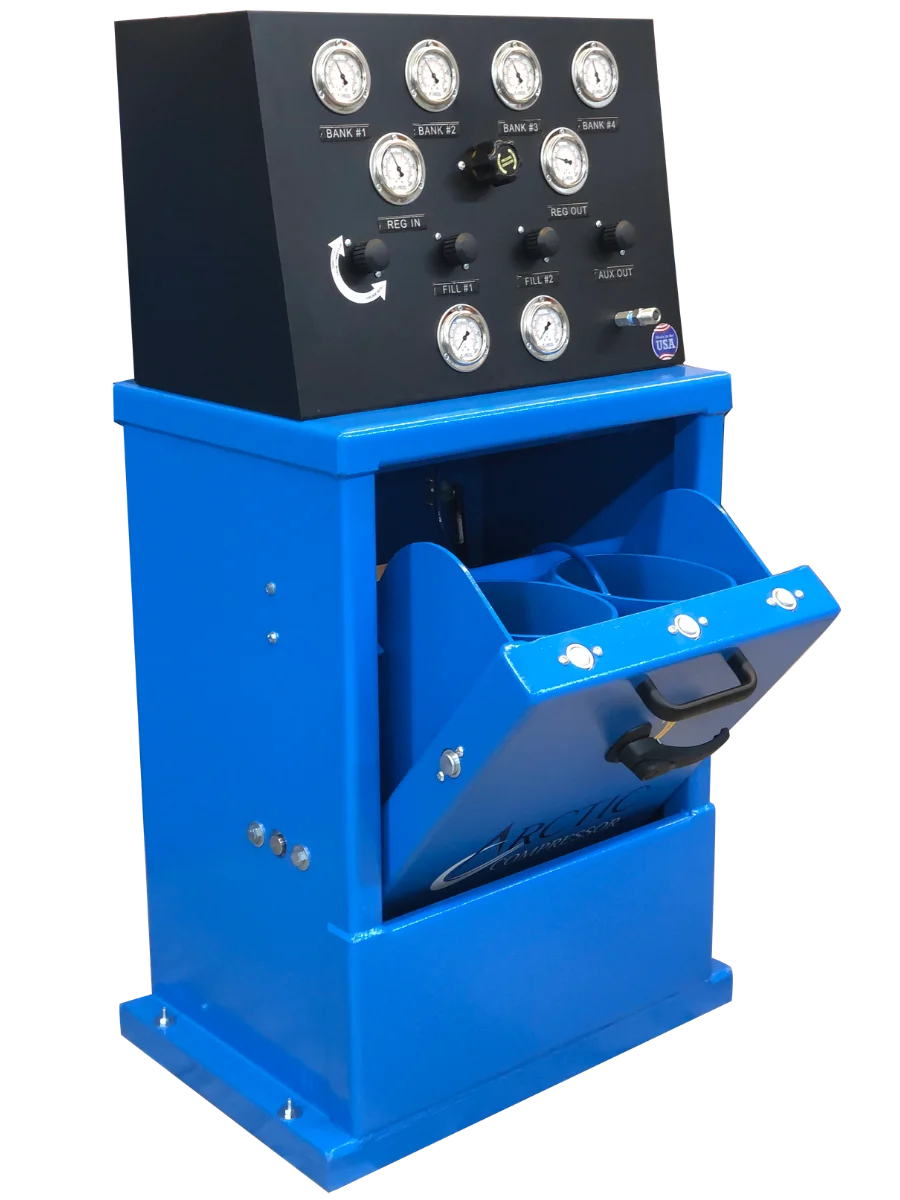

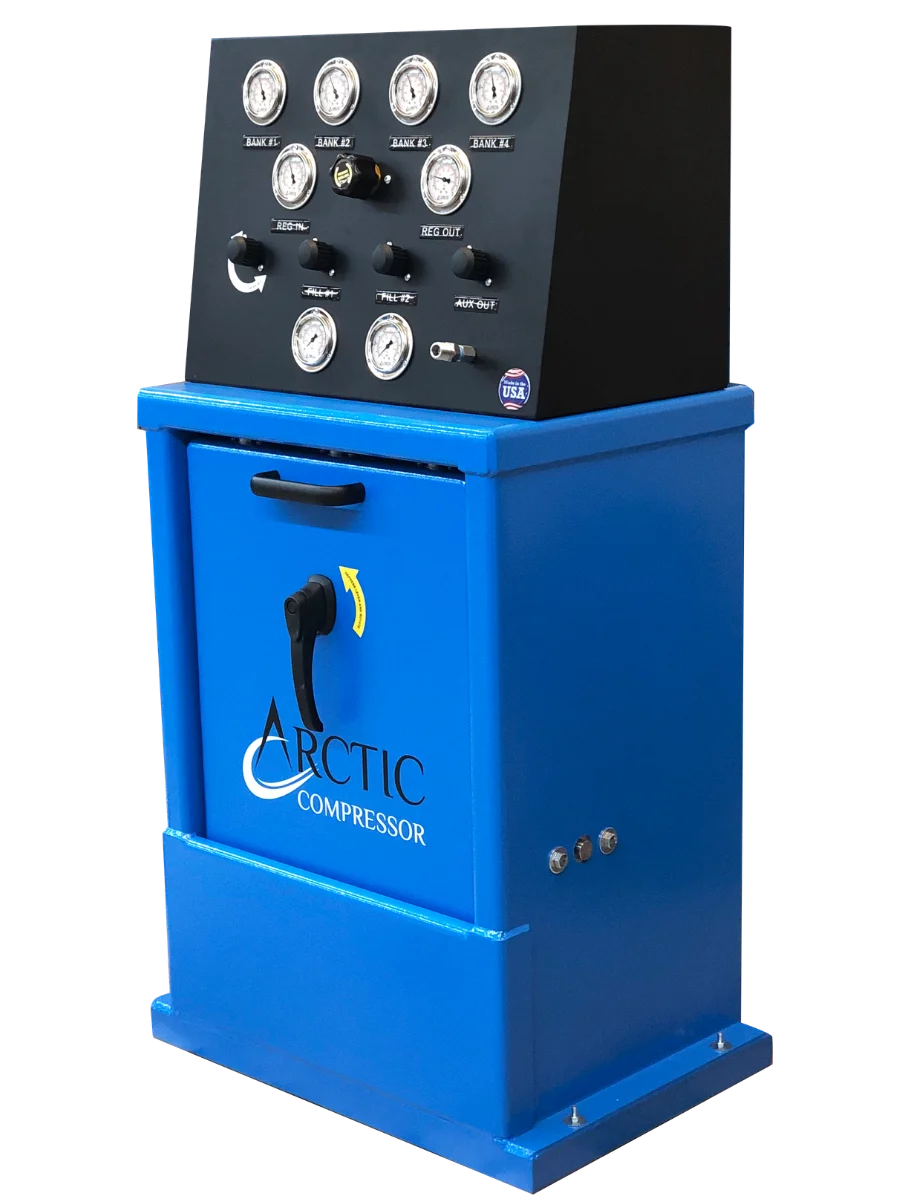

The Arctic Auto-Cascade Fill Station is an advanced SCBA and SCUBA cylinder filling cascade system designed to optimize breathing air operations. By pneumatically balancing storage banks, this unit ensures efficient breathing air cascade system management, reducing human error and freeing personnel for other critical tasks. Eliminate the hassle of manual cascade filling with automated precision.
Fast Delivery Times
Real People. Real Service.
The Arctic Auto-Cascade Fill Station is an advanced SCBA and SCUBA cylinder filling cascade system designed to optimize breathing air operations. By pneumatically balancing storage banks, this unit ensures efficient breathing air cascade system management, reducing human error and freeing personnel for other critical tasks. Eliminate the hassle of manual cascade filling with automated precision.
Truly American-MadeTM
Fast Delivery Times
The Auto-Cascade Fill Station is a powerful solution for SCBA and SCUBA cylinder filling, designed to maximize efficiency with minimal operator involvement. It easily integrates with any Arctic Compressor or existing breathing air compressor and air storage system, featuring four inlet connections for cascade cylinders and one dedicated compressor inlet.
Built for versatility, this fill station accommodates most SCBA and SCUBA cylinders ranging from 2216 PSI to 5500 PSI. Plus, its coated fill pockets help protect cylinders and minimize scuffing during the fill process.
We stand by our commitment to quality and integrity, embodying our Truly American-Made™ spirit. By sourcing parts and assembling our products in the United States, we guarantee that every item meets the highest standards. It’s not just about supporting local industries; it’s about delivering exceptional craftsmanship and reliability.
Lock first. Then fill. Exceptional operator safety
Options for filling two or three cylinders simultaneously
Easily fill your cylinders with powerful pressure handling capabilities
Arctic Containment Fill Stations have been certified to meet and exceed the rigorous NFPA 1901 (2016) standards. Our units are tested to withstand 5700 PSI burst pressure, exceeding the NFPA requirements of 5500 PSI.
Fill from storage or directly from your compressor with a single valve operation, maximizing stored air efficiently
The pneumatic auto-cascade feature automatically opens and closes storage banks as pressure equalizes, simplifying the refilling process
From pneumatic operation to single valve control to versatile filling options, our auto-cascade system is designed for efficiency
Double or triple position capacity
Ability to accommodate 2216 PSI to 5500 PSI SCBA/SCUBA cylinders
Safety Interlock
Prevents filling unless door is closed and latched
Lockout Capabilities
Latching mechanism provides lockout capabilities
Venting
Vents are at the back and bottom of the unit for operator safety
Fabricated Steel Cabinet and Door
Unit is constructed from high-strength steel
Pressure Gauges
Glycerin filled pressure gauges with both PSI and BAR scales
Isolation Fill Valves
Individual isolation fill valves provide operator control and more efficient cascading
Built-in Regulator
Effectively controls the outlet pressure and allows for precise adjustments
Well-balanced door equipped with gas strut assistance for easy singlehanded operation
Simple Filling
Fill hoses with bleed valves and SCBA fill adapters
Cylinder Adaptability
Accommodates most 2216 PSI to 5500 PSI SCBA/SCUBA cylinders with coated fill pockets to prevent scuffing
Inlet Connectors
4 inlet connectors from cascade cylinders, 1 inlet compressor connector
Dual Auxiliary Ports
Provides more versatility to meet the unique needs of each user
Storage Bank Connections
4 bank cascade controls
Single-Handed Loading
Balanced door design with gas strut assistance for easy, single-handed operation
640 – 830 lbs
Double Fill Positions
56″ H, 21″ D, 30″ W
Triple Fill Positions
56″ H, 21″ D, 42″ W
Model C-FS2PA55
Model C-FS3PA55
In addition to offering three control options to choose from, our fill station’s balanced door with gas strut assistance allows for easy single-handed operation, while durable coated fill pockets prevent cylinder scuffing.
With our control panels and isolation fill valves, we enable efficient filling of single or multiple cylinders while effectively managing your air supply.
Our safety interlock system, secure latching mechanism, and vented design ensure operator protection during cylinder filling operations.
Our fill stations are built with high-grade steel and aircraft-grade aluminum components, making it the most durable, longest-lasting fill station on the market.
Clear, glycerin-filled pressure gauges in both PSI and BAR units provide easy-to-read status information for all fill positions and banks.
1.

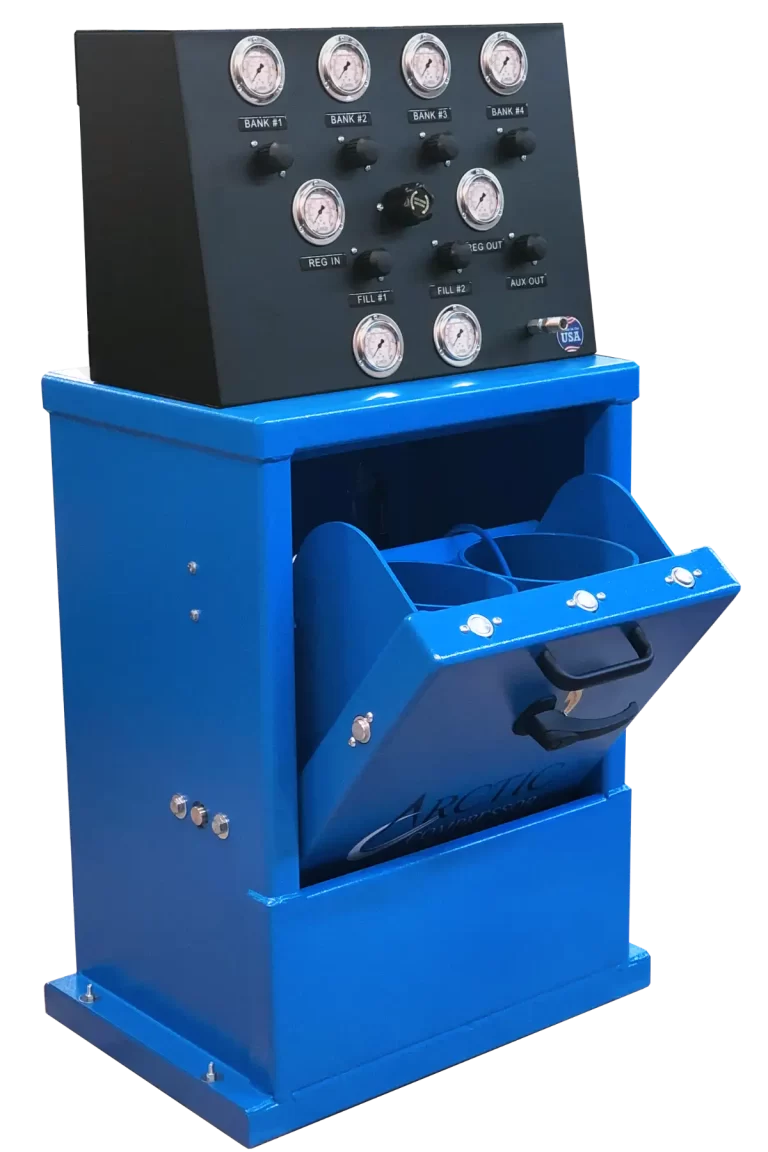

Determine what panel style fits your needs. Currently, you are viewing our Auto-Cascade panel style. We also offer:
2.
Determine how many cylinders need to be filled simultaneously. You can choose between single, double, or triple fill positions.
3.
After you have determined your needs, request a quote with us!
Need some help determining what specs you need on your fill station? Contact us, and our team of experienced experts will be happy to assist.
Since our products are Truly American-Made, our systems ship faster than our competitors. That means we can get your products into your hands faster, and with fewer issues and delays. Our team will work closely with you to determine the best timeline and shipping method.
