Manual Cascade Containment Fill Station

The Arctic Manual Cascade Fill Station provides a reliable, simple, and efficient solution for filling SCBA and/or SCUBA cylinders. This model is designed for operators who prefer direct control over the cylinder filling process.

Fast Delivery Times

Real People. Real Service.

Product Overview

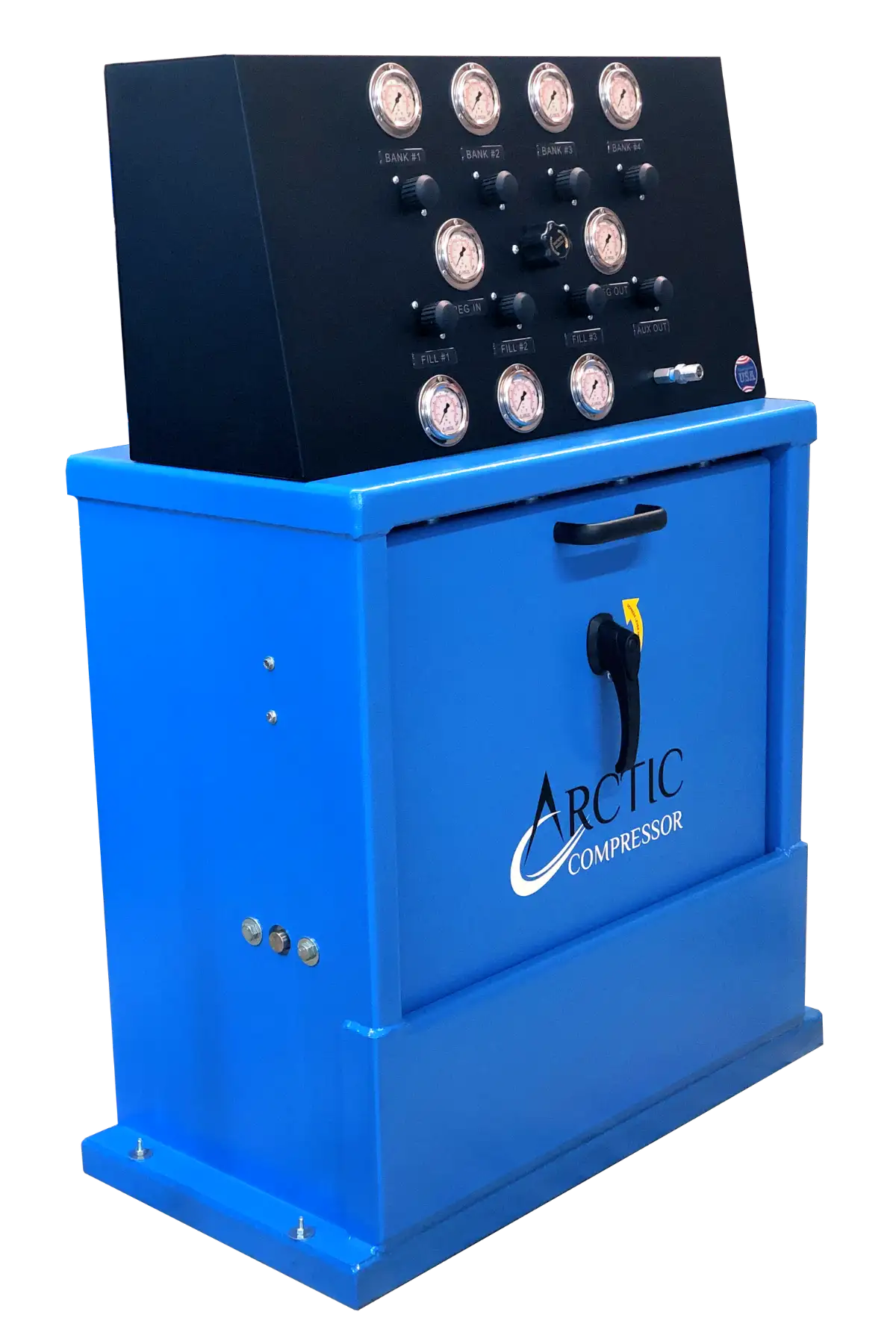

The Manual Cascade Fill Station is an efficient solution for SCBA and SCUBA cylinder filling, designed for operators who prefer direct control over fill pressure. It easily integrates with any Arctic Compressor or other existing breathing air compressor and air storage system, featuring four inlet connections for cascade cylinders and one dedicated compressor inlet.

Built for versatility, this fill station accommodates most SCBA and SCUBA cylinders ranging from 2216 PSI to 5500 PSI. Plus, its coated fill pockets help protect cylinders and minimize scuffing during the fill process.

We stand by our commitment to quality and integrity, embodying our Truly American-Made™ spirit. By sourcing parts and assembling our products in the United States, we guarantee that every item meets the highest standards. It’s not just about supporting local industries; it’s about delivering exceptional craftsmanship and reliability.

Maximum Safety

Lock first. Then fill. Exceptional operator safety

Single, Double, or Triple Fill Positions

Options for filling one, two, or three cylinders simultaneously

6000* Max PSI

Easily fill your cylinders with powerful pressure handling capabilities

Exceeds NFPA Standards

Arctic Containment Fill Stations have been certified to meet and exceed the rigorous NFPA 1901 (2016) standards. Our units are tested to withstand 5700 PSI burst pressure, exceeding the NFPA requirements of 5500 PSI.

firefighter using a Arctic Compressor SCBA containment fill station

Ease of Use

Fill from your breathing air storage cylinders or directly from your compressor

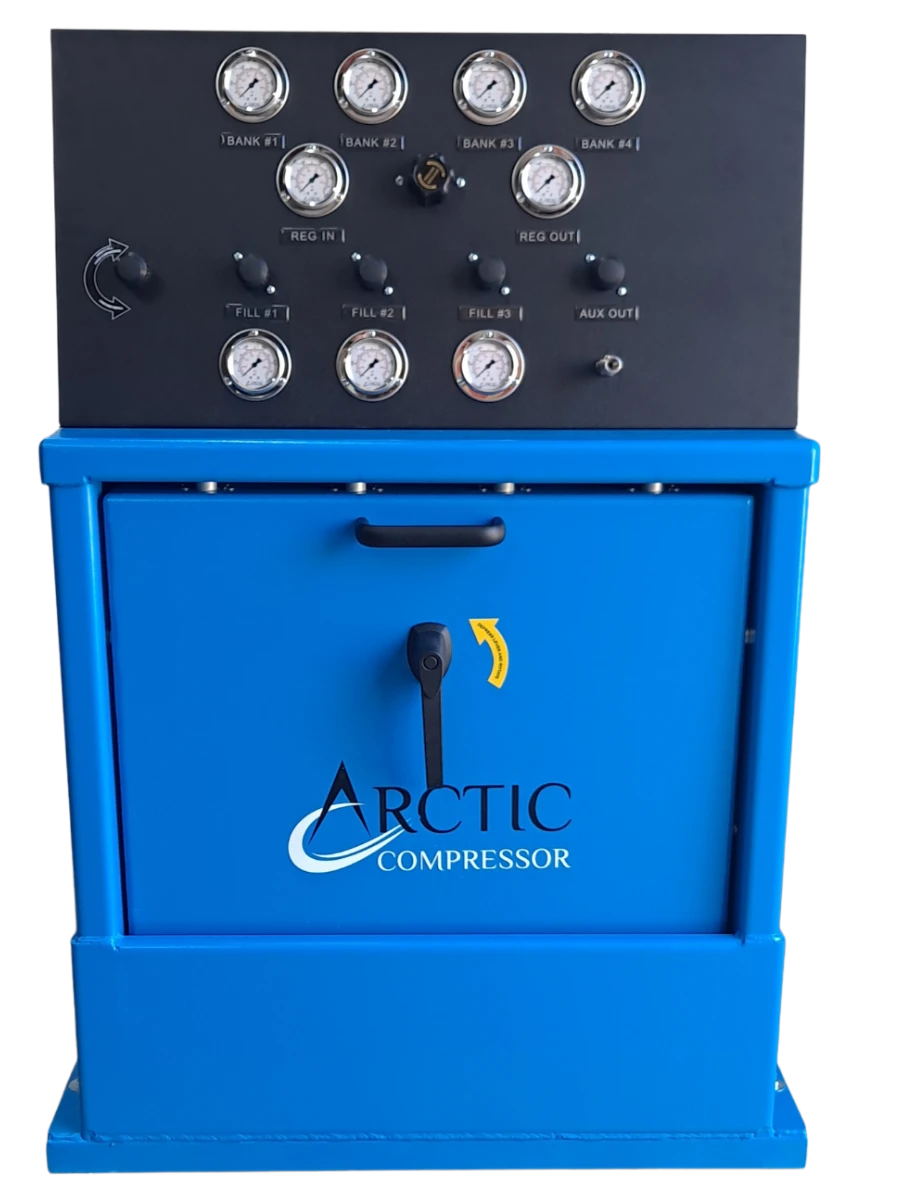

Simple Control System

The manual control panel offers operators direct control over the filling process

Standard Features

Fill Positions

Single, double, or triple position capacity



Accommodates Many Cylinder Sizes

Ability to accommodate 2216 PSI to 5500 PSI SCBA/SCUBA cylinders



Exceptional Safety

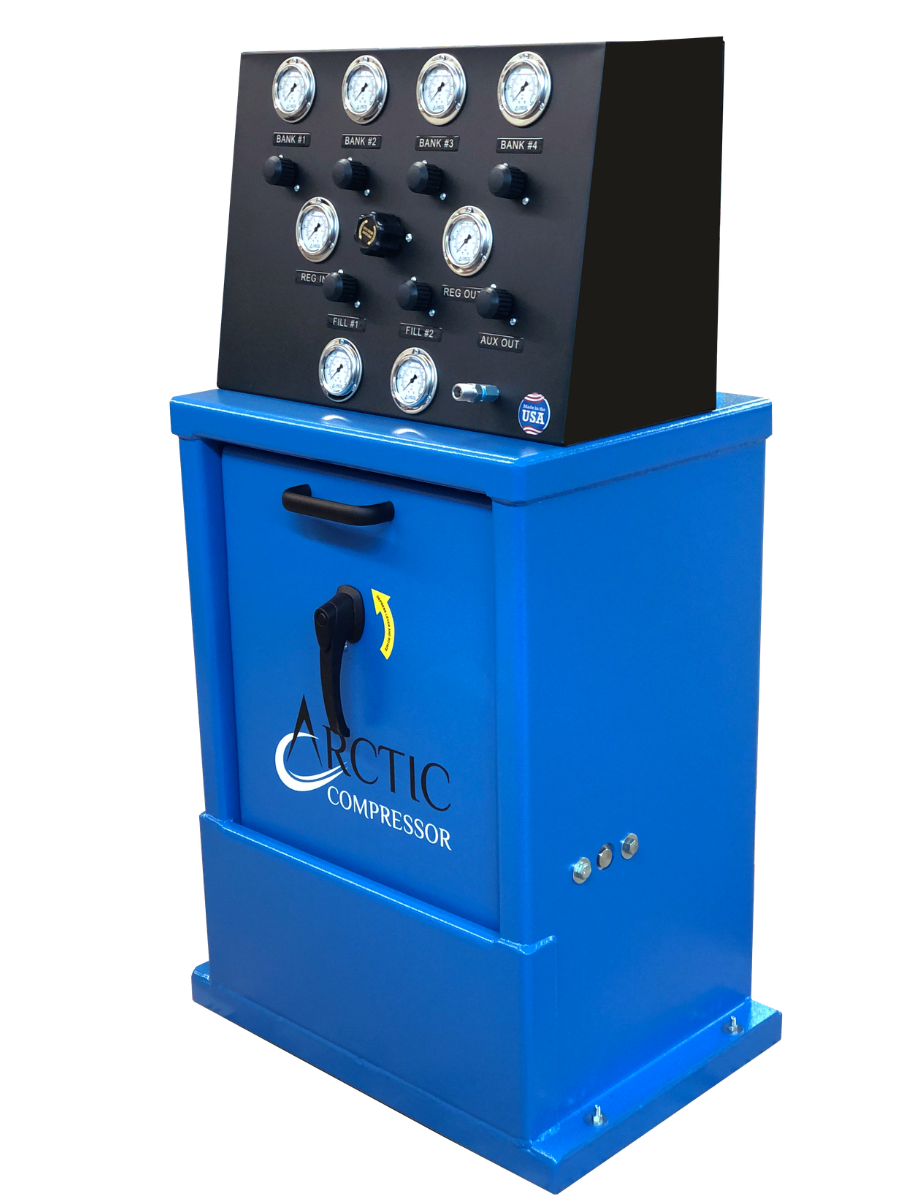

Safety Interlock
Prevents filling unless door is closed and latched

Lockout Capabilities
Latching mechanism provides lockout capabilities

Venting
Vents are at the back and bottom of the unit for operator safety

Fabricated Steel Cabinet and Door
Unit is constructed from high-strength steel



Real-Time Monitoring

Pressure Gauges
Glycerin filled pressure gauges with both PSI and BAR scales

Isolation Fill Valves
Individual isolation fill valves provide operator control and more efficient cascading

Built-in Regulator
Effectively controls the outlet pressure and allows for precise adjustments

Easy Connections

Simple Filling
Fill hoses with bleed valves and SCBA fill adapters

Cylinder Adaptability
Accommodates most 2216 PSI to 5500 PSI SCBA/SCUBA cylinders with coated fill pockets to prevent scuffing

Inlet Connectors
4 inlet connectors from cascade cylinders, 1 inlet compressor connector

Dual Auxiliary Ports
Provides more versatility to meet the unique needs of each user

Storage Bank Connections
4 bank cascade controls



Ergonomic & Efficient Operation

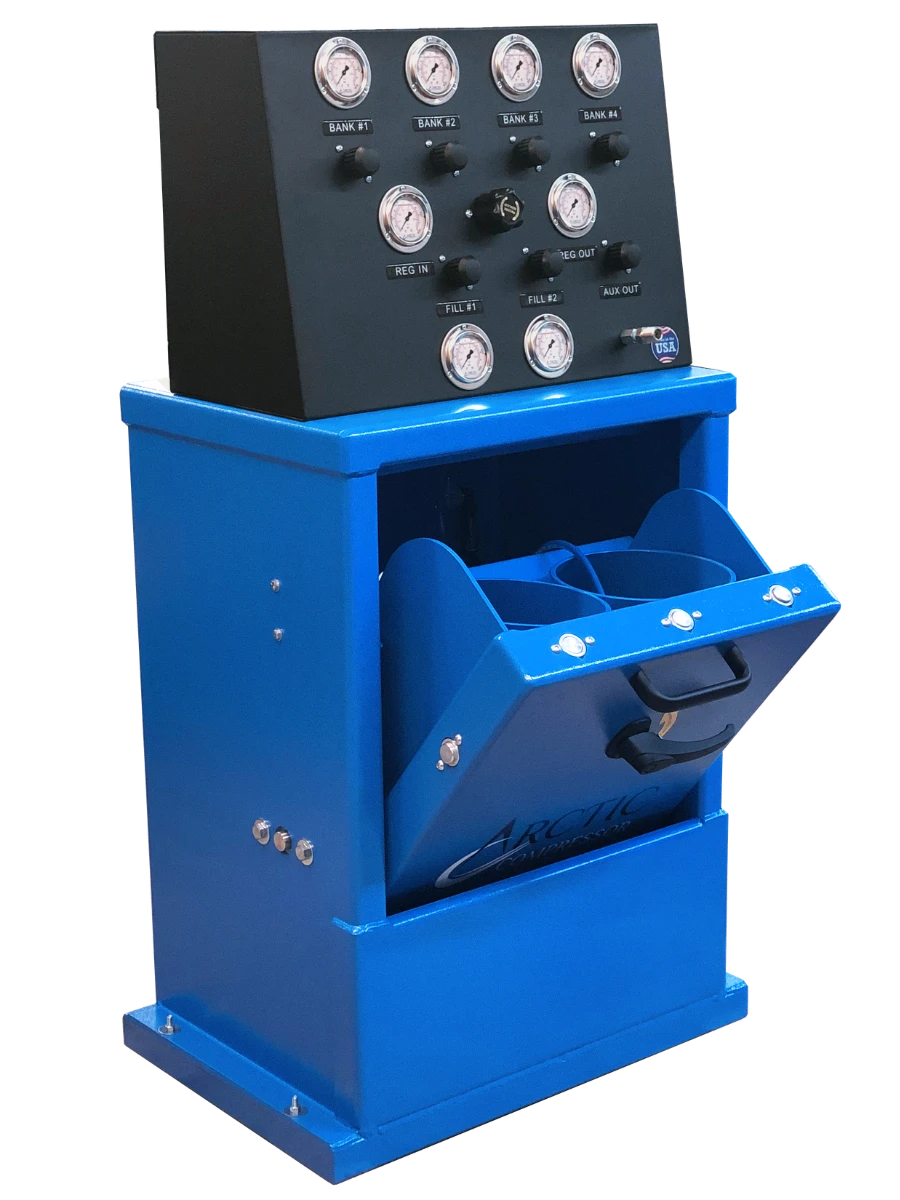

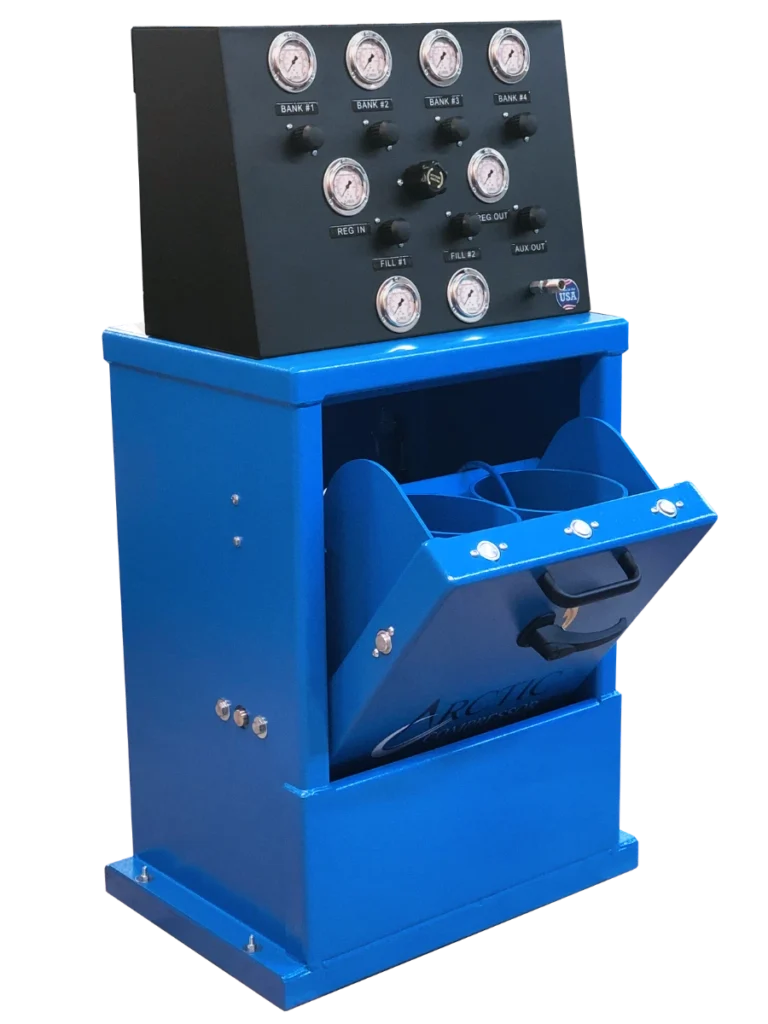

Single-Handed Loading
Balanced door design with gas strut assistance for easy, single-handed operation

Technical Specifications

450 – 830 lbs

Single Fill Position
64″ H, 21″ D, 21″ W

Double Fill Positions
56″ H, 21″ D, 30″ W

Triple Fill Positions
56″ H, 21″ D, 42″ W

Model C-FS1C55

  • Max Inlet Pressure
    6000 PSI
  • Fill Positions
    1

Model C-FS2C55

  • Max Inlet Pressure
    6000 PSI
  • Fill Positions
    2

Model C-FS3C55

  • Max Inlet Pressure
    6000 PSI
  • Fill Positions
    3

Delivery and Timeline

Fastest Lead Time and Shipping in the Industry

Since our products are Truly American-Made, our systems ship faster than our competitors. That means we can get your products into your hands faster, and with fewer issues and delays. Our team will work closely with you to determine the best timeline and shipping method.

Choosing a Fill Station

1.

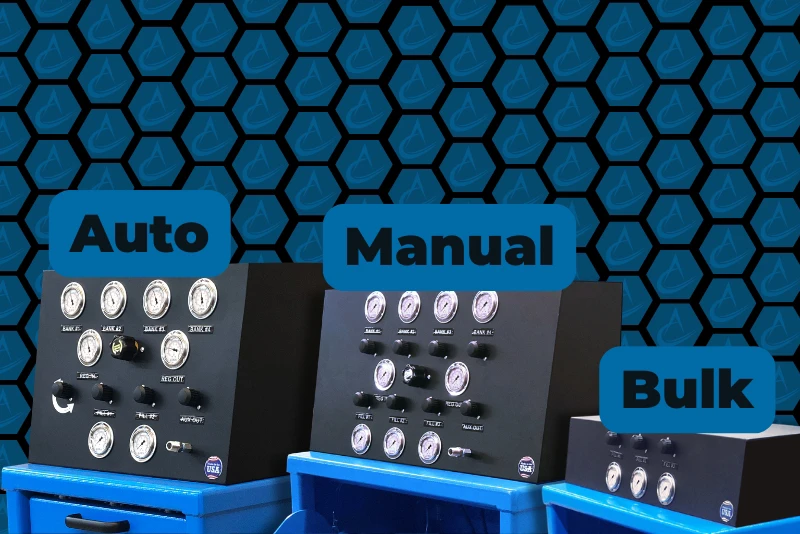

Choose your panel style

Determine what panel style fits your needs. Currently, you are viewing our Manual Cascade panel style. We also offer:

Auto Cascade

Non-Cascade

Compact

2.

Choose your Fill Positions

Determine how many cylinders need to be filled simultaneously. You can choose between single, double, or triple fill positions.

3.

Request a Quote

After you have determined your needs, request a quote with us!

Need some help determining what specs you need on your fill station? Contact us, and our team of experienced experts will be happy to assist.
