Compact Containment Fill Station

Mobile solutions, for when every moment matters. The Arctic Compact Fill Station, a mobile SCBA and/or SCUBA fill station, allows for safe, on-the-go cylinder refills. Designed for simple operation in a rugged, space-saving package optimized for mobile applications.

Truly American-MadeTM

Fast Delivery Times

Compact Containment Fill Station

Mobile solutions, for when every moment matters. The Arctic Compact Fill Station, a mobile SCBA and/or SCUBA fill station, allows for safe, on-the-go cylinder refills. Designed for simple operation in a rugged, space-saving package optimized for mobile applications.

Fast Delivery Times

Real People. Real Service.

Product Overview

The Arctic Compact Fill Station is designed to provide a safe, efficient, and mobile solution for refilling breathing air SCBA and/or SCUBA cylinders in demanding environments. Built with rugged durability and user-friendly features, these fill stations are ideal for applications requiring mobility, such as firefighting, emergency response, and industrial operations.

Mobile Design

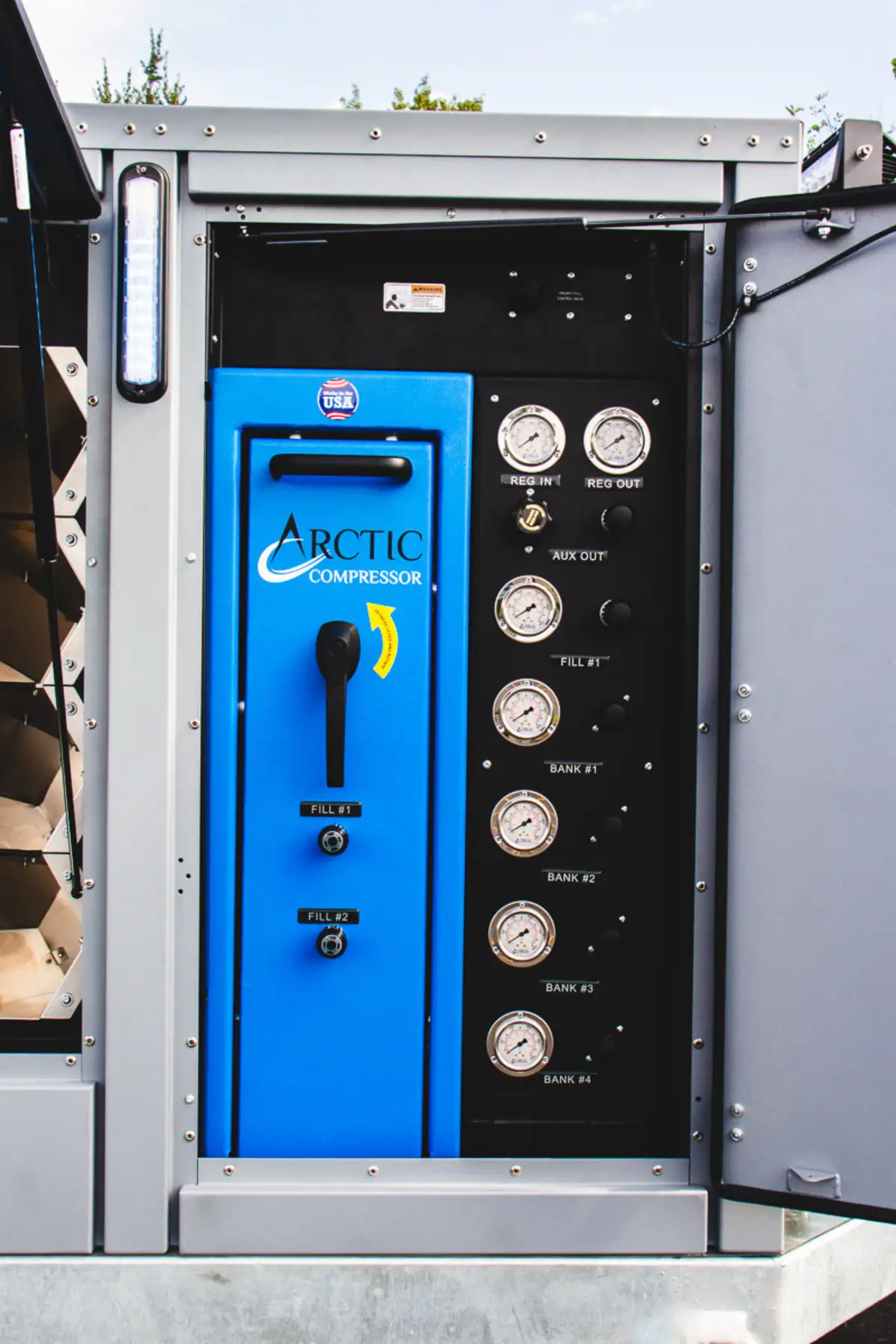

Easily transport on the ALL POWER Mobile Air Trailer or your breathing air mobile unit directly to the scene or to service other stations

Simple Control System

With a manual cascade control panel, the Compact Fill Station provides direct control over cylinder filling

Operator Efficiency

With simple controls you can help your operators stay efficient and free them up to do other tasks

Exceeds NFPA Standards

Arctic Containment Fill Stations have been certified to meet and exceed the rigorous NFPA 1901 (2016) standards. Our units are tested to withstand 5700 PSI burst pressure, exceeding the NFPA requirements of 5500 PSI.

Standard Features

Fill Positions

Double position capacity



Accommodates Many Cylinder Sizes

Ability to accommodate 2216 PSI to 5500 PSI SCBA/SCUBA cylinders



Exceptional Safety

Safety Interlock
Prevents filling unless door is closed and latched

Lockout Capabilities
Latching mechanism provides lockout capabilities

Venting
Vents are at the back and bottom of the unit for operator safety

Fabricated Steel Cabinet and Door
Unit is constructed from high-strength steel



Real-Time Monitoring

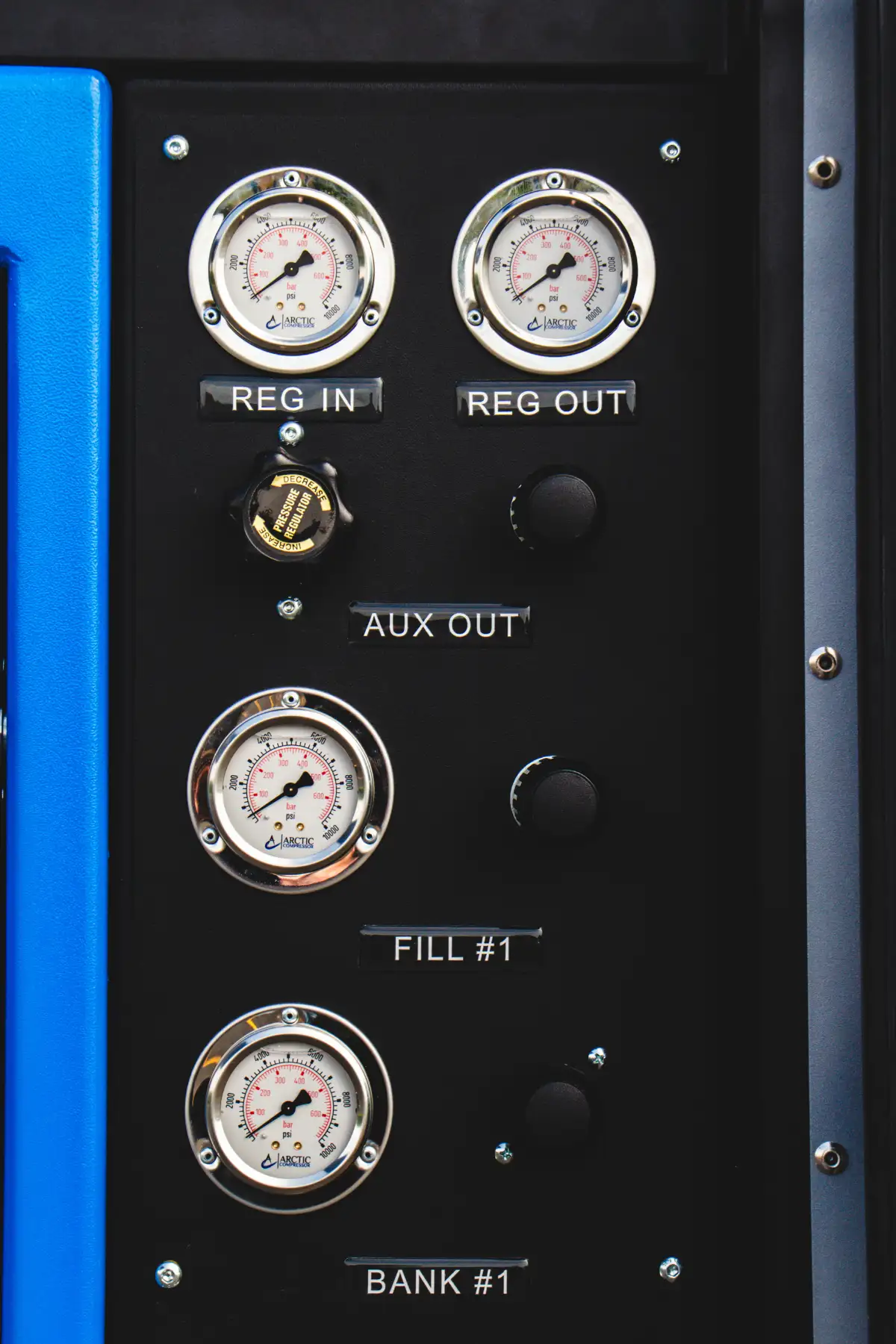

Pressure Gauges
Glycerin filled pressure gauges with both PSI and BAR scales

Isolation Fill Valves
Individual isolation fill valves provide operator control and more efficient cascading

Built-in Regulator
Effectively controls the outlet pressure and allows for precise adjustments

Simple Operator Experience

Well-balanced door equipped with gas strut assistance for easy singlehanded operation



Easy Connections

Simple Filling
Fill hoses with bleed valves and SCBA fill adapters

Cylinder Adaptability
Accommodates most 2216 PSI to 5500 PSI SCBA/SCUBA cylinders with coated fill pockets to prevent scuffing

Inlet Connectors
4 inlet connectors from cascade cylinders, 1 inlet compressor connector

Dual Auxiliary Ports
Provides more versatility to meet the unique needs of each user

Storage Bank Connections
4 bank cascade controls



Ergonomic & Efficient Operation

Single-Handed Loading
Balanced door design with gas strut assistance for easy, single-handed operation

Technical Specifications

450 lbs

42″ H, 23″ D, 23″ W

Arctic Compact Fill Station Cut Sheet

Model C-FSMOBILE

  • Max Inlet Pressure
    6000 PSI
  • Fill Positions
    2

Why You'll Love it

Delivery and Timeline

Fastest Lead Time and Shipping in the Industry

Since our products are Truly American-Made, our systems ship faster than our competitors. That means we can get your products into your hands faster, and with fewer issues and delays. Our team will work closely with you to determine the best timeline and shipping method.
